3D形状確認と計測3D viewing and measurement
受領した STEP / IGES / STL をすばやく開き、形状確認、断面確認、寸法確認を 1 つの画面で進められます。Open incoming STEP / IGES / STL files quickly and move through shape review, section checks and measurement in one interface.
Product Information
製品名、ライセンス、対応OS、対応形式、ダウンロード方法をまとめて確認できます。Find the product name, license, supported OS, supported formats and download path in one place.
| Product Name | StepGeomChecker |
|---|---|
| License | Freeware |
| Platform | Windows 10 / 11 64-bit |
| Supported Formats | STEP / STP / IGES / IGS / STL |
| Category | Manufacturing Review / Measurement Tool |
| Version | 2.2.0 |
| Last Updated | 2026-04-28 |
| Official Download | Download StepGeomChecker |
| GitHub Download | Download from GitHub |
| Package | Official ZIP package delivered from the LWJ download page |
| File Size | 62MB |
Ver 2.2.0 の主要機能Key functions in Ver 2.2.0
STEP / IGES の通常穴・座グリ穴・皿穴チェックに対応し、期待件数との比較、穴結果一覧、3D 表示連動、CSV 出力まで行えます。Supports normal, counterbore and countersink hole checks for STEP / IGES, including expected-count comparison, hole result lists, 3D view linkage and CSV export.
要望に合わせてカスタマイズ可能Customizable to your workflow
確認項目、運用フロー、表示内容、出力内容など、ご要望に合わせたカスタマイズの相談が可能です。Customization can be discussed to match your inspection items, workflow, display needs and output requirements.
大量データの一覧・整理には GeomCatalogNeed thumbnail-based cataloging? See GeomCatalog
受領データや設計データをサムネイル中心で一覧・整理・検索したい場合は、関連ソフトの GeomCatalog もご覧ください。StepGeomChecker と組み合わせて、一覧管理から詳細確認までつなげられます。If you need thumbnail-based browsing, organization and search for incoming or design data, take a look at the related software GeomCatalog. Used together with StepGeomChecker, it supports a smooth flow from catalog management to detailed inspection.
GeomCatalog の詳細を見るV2.2 Hole Check
STEP / IGES モデルの通常穴・座グリ穴・皿穴を条件付きで抽出し、期待件数との差分を確認できます。Extract normal holes, counterbore holes and countersink holes from STEP / IGES models by condition and compare detected counts with expected counts.
Supported hole types
- Normal holes based mainly on cylindrical geometry
- Counterbore holes with a larger counterbore and smaller pilot hole
- Countersink holes with a conical entrance shape
- Faces that form the same hole are grouped and handled as one feature where possible
Result review
- Compare expected counts with detected counts and review OK / NG
- Review hole type, through / blind status, pilot diameter, depth, counterbore diameter and countersink angle
- Hole totals and individual hole results are integrated into the standard results screen
- Save results, reopen them for the same model and export lists to CSV
| Target range | Full model / selected part / selected subtree / currently visible range |
|---|---|
| Main conditions | Hole type, expected count, pilot diameter range, through / blind / unknown, counterbore diameter and depth, countersink outside diameter and angle |
| Hole check support | STEP / IGES only. STL is not supported for V2.2 hole checking. |

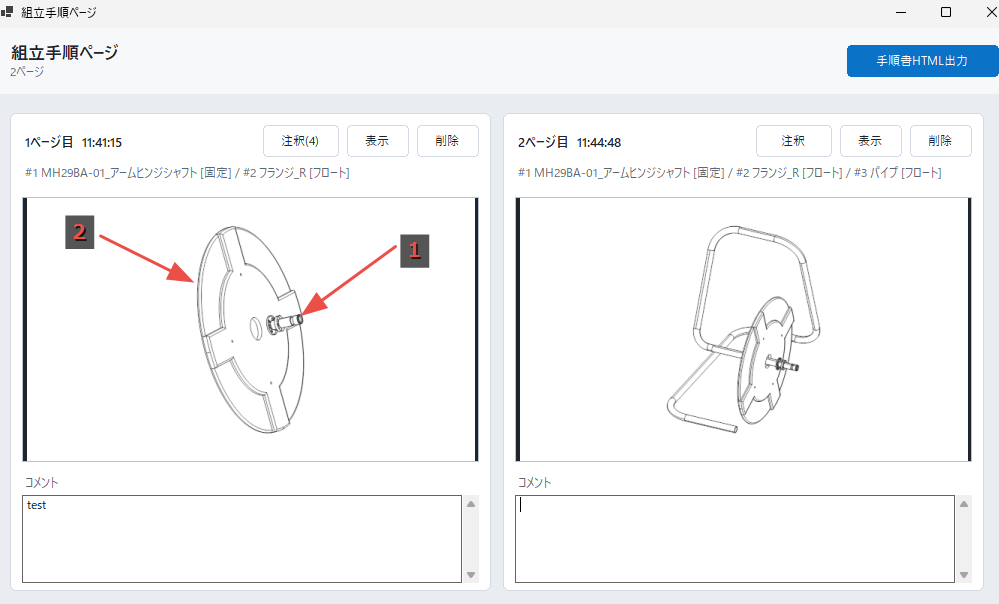

Screenshots
断面確認、重量設定、各種計測、計測結果一覧、HTMLレポート、STL書き出し品質設定など、主な機能画面を掲載しています。These screenshots show section checks, weight settings, measurement tools, results, HTML reports and STL export quality settings.

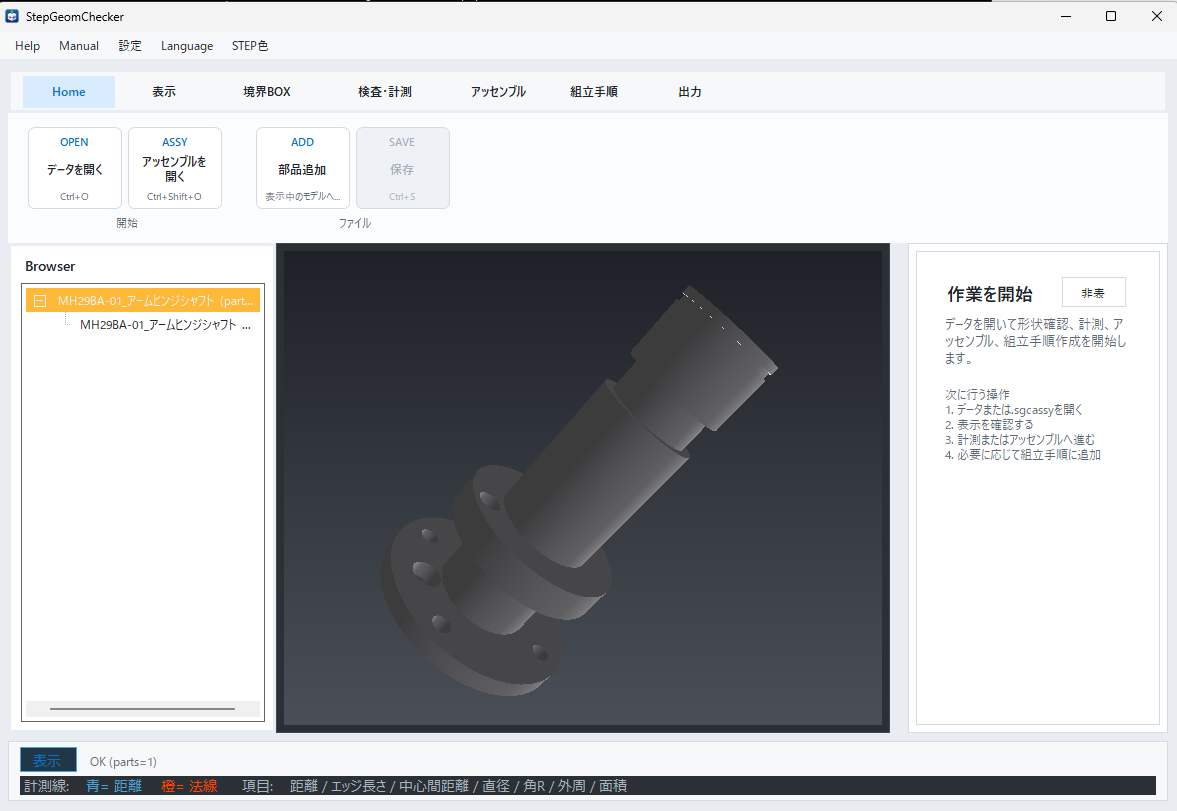

Main Screen / メイン画面
ビューワ、Parts ツリー、計測ボタン、断面操作を 1 画面にまとめたメインUIです。This is the main UI that combines the 3D viewer, parts tree, measurement controls and section tools in one screen.

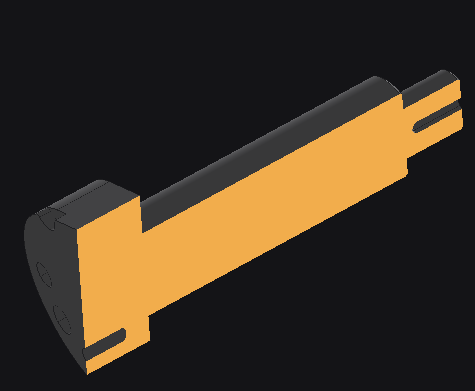

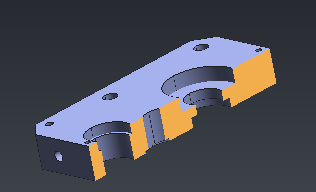

Section View / 断面表示
断面表示で内部形状や干渉箇所を確認できます。Use section view to inspect internal geometry and interference points.
Weight Settings / 重量設定
材料プリセットや手動入力で重量を設定し、見積前確認や部品情報整理に使えます。Set weight by material preset or manual entry for quotation checks and part information review.

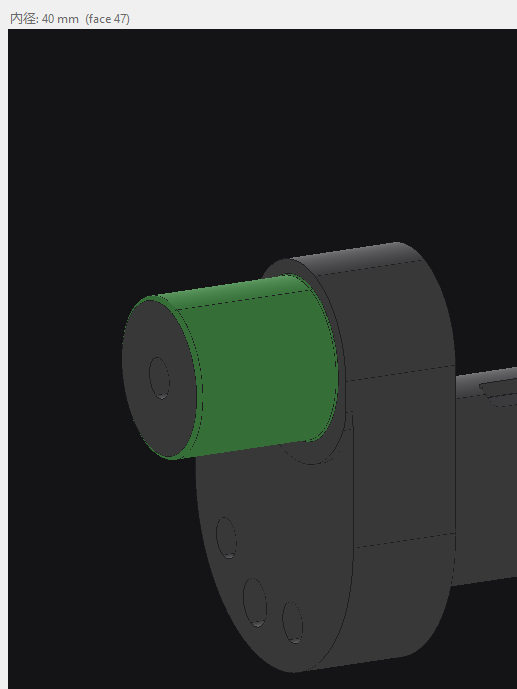

Diameter Measurement / 直径計測
穴や円筒面の直径を確認できます。Measure hole and cylindrical diameters for machining and inspection checks.
Straight Distance / 直線距離
直線距離を確認し、部品寸法や取り合い確認に使えます。Check straight distances for part dimensions and fit-up review.

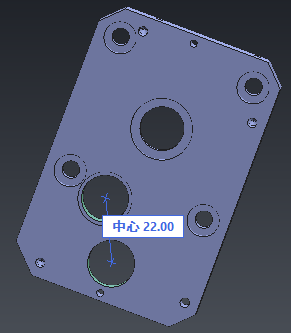

Center Distance / 中心間距離
穴位置やピッチ確認に便利な中心間距離計測です。Measure center-to-center distance for hole location and pitch checks.

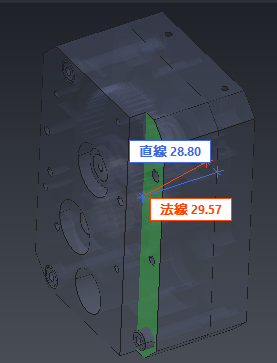

Straight / Normal Distance / 直線距離・法線距離
直線距離と法線距離を使い分けて確認できます。Compare straight and normal distance measurements depending on the inspection purpose.

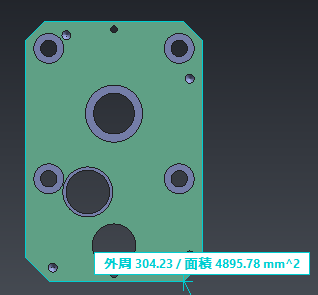

Perimeter / Area / 外周・面積
外周長と面積を確認し、形状比較や加工前の確認に使えます。Check perimeter and area for shape comparison and pre-machining review.
Edge Length / エッジ長さ
エッジ長さを確認し、輪郭寸法の確認に使えます。Measure edge length for contour and detail dimension checks.

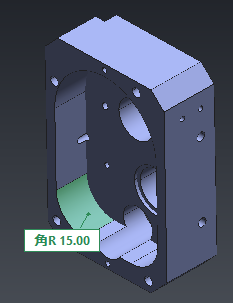

Corner Radius / 角R
角Rの確認により加工形状や面取り周辺の検討に使えます。Check corner radii for machining review and feature confirmation.

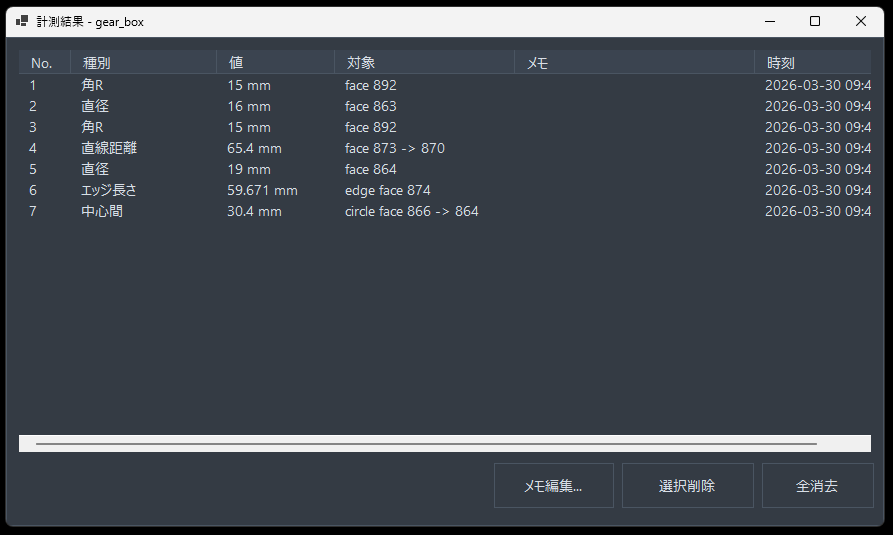

Measurement Results List / 計測結果一覧
計測結果を一覧で管理し、対象や値を後から見直せます。Manage measurement results in a list and review targets and values later.

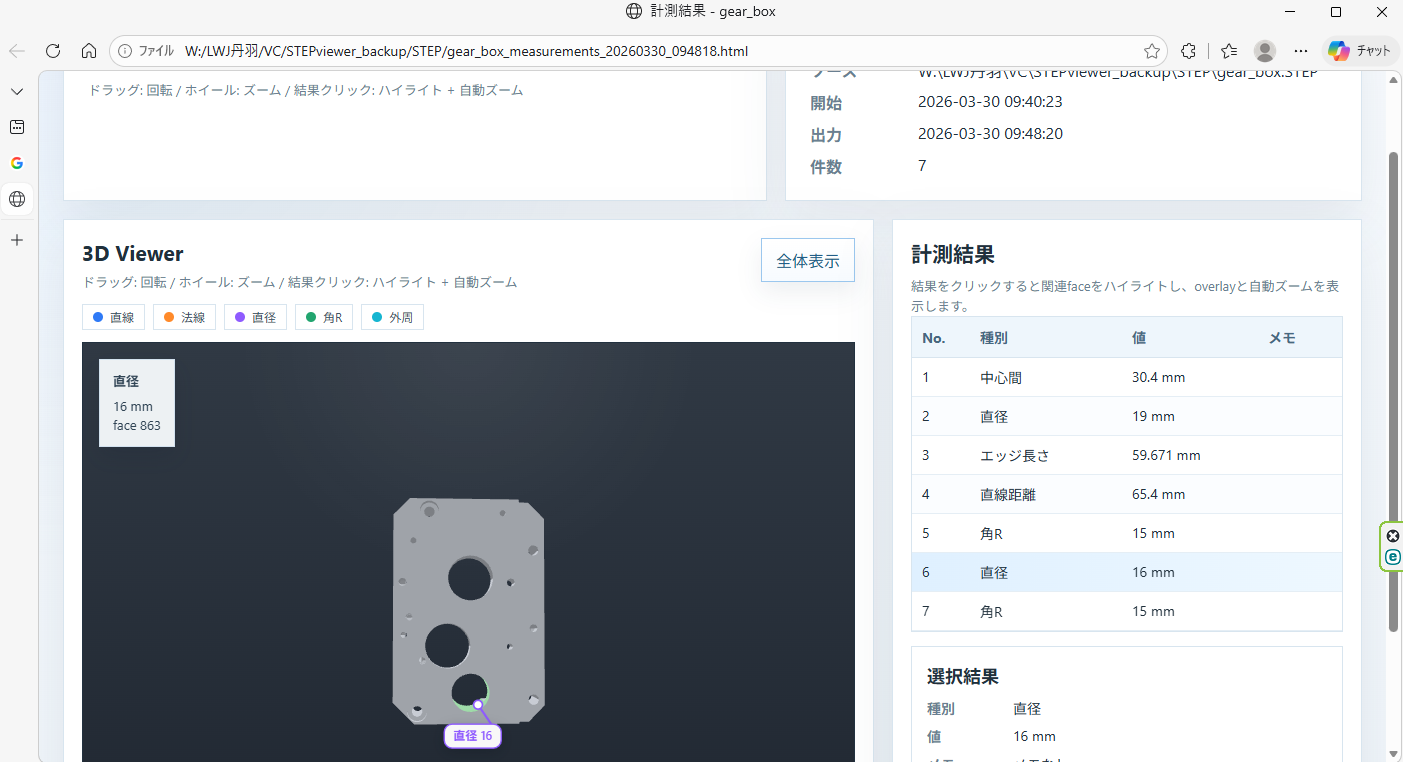

HTML Report / HTMLレポート
計測結果をHTMLレポートとして出力し、共有や記録に利用できます。Export measurement results as HTML reports for sharing and record keeping.

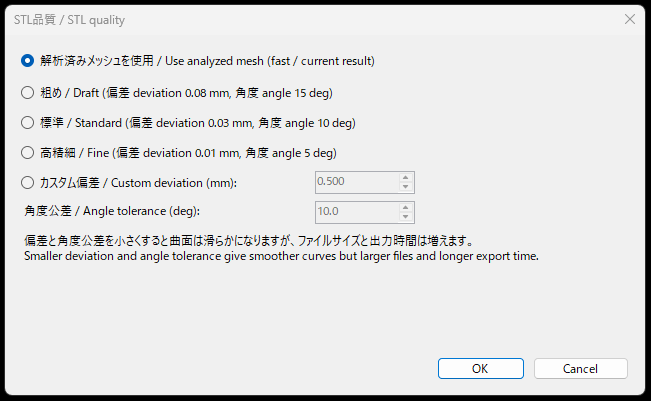

STL Export Quality / STL書き出し品質
STL書き出し時の品質設定を調整し、用途に応じた出力ができます。Adjust STL export quality settings to balance smoothness, file size and output time.
Features
製造業での確認・計測・共有を進めやすい機能をまとめています。These functions are designed to support inspection, measurement and sharing in manufacturing workflows.
Main Functions
- Open STEP / STP / IGES / IGS / STL files
- STEP / IGES hole check for normal, counterbore and countersink holes
- Expected-count comparison, hole totals, individual hole results and CSV export
- Section view, perspective / ortho, wireframe / shaded display

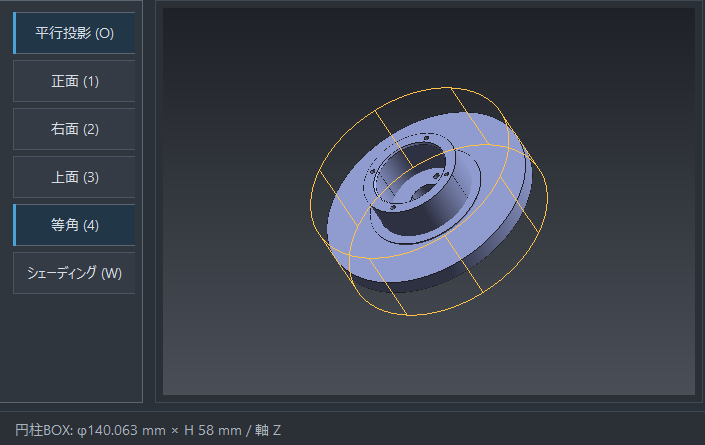

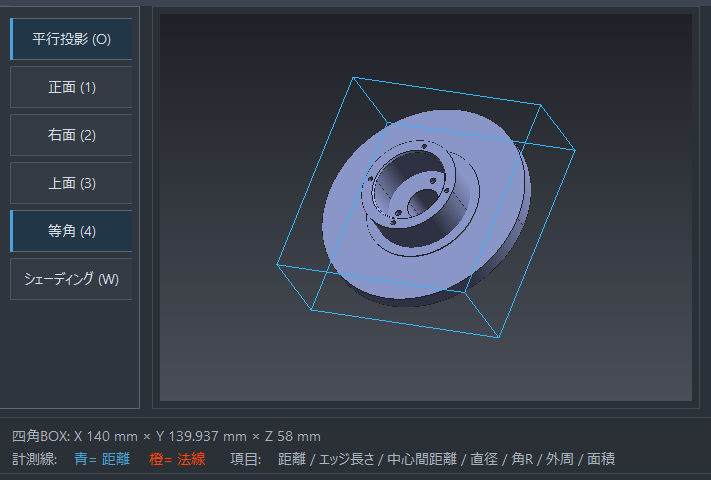

- Face distance, cylinder diameter, corner R, perimeter/area, edge length and center distance

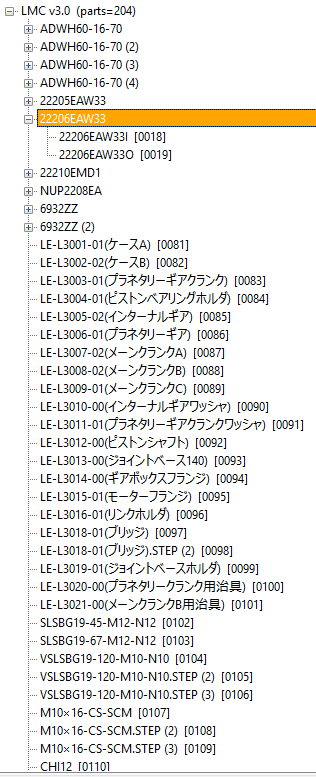

- Parts tree link, Hide Others and subassembly review
- Measurement and hole-check results, memo editing and JSON auto save / restore
- Weight settings, STEP colors and HTML report export
Typical Uses
- Check hole counts in received STEP / IGES data
- Compare drawing-specified hole counts with the 3D model
- Review normal, counterbore and countersink holes separately
- Shape review, section checks and dimension confirmation before machining
- Part-level or subassembly-level hole checks
- Save measurement sessions and share HTML reports with non-CAD stakeholders
Who is it for?
Suitable when you need to inspect, measure and share 3D data in manufacturing work without using a full CAD system.
設計確認だけでなく、受領データの事前チェック、加工前確認、見積前確認、協力会社との形状共有など、製造業の実務で 3D CAD データを確実に確認したい場面に向いています。設計者以外の担当者でも扱いやすいことを重視しています。It fits manufacturing workflows such as incoming-data checks, pre-machining review, pre-quotation checks and geometry sharing with suppliers. It is intended to be usable not only by engineers but also by non-CAD specialists involved in manufacturing operations.
Engineers
設計前後の形状確認、断面確認、寸法チェック、レビュー前の下見に使えます。Use it for geometry review, section checks, dimension checks and quick inspection before design reviews.
Manufacturing Teams
加工前の確認、現場で受け取った 3D データのレビュー、断面や寸法の確認に向いています。Useful for pre-machining checks, reviewing 3D data received on the shop floor, and checking sections and dimensions.
Suppliers
受領した STEP / IGES / STL データの確認や共有、問い合わせ前の事前確認に使えます。Use it to inspect and share incoming STEP / IGES / STL data and make quick checks before contacting the customer or supplier.
Procurement and QA
構成確認、寸法確認、重量確認、打ち合わせ前の下見用途に適しています。設計者でなくても確認しやすい画面構成です。Suitable for structure checks, dimension review, weight review and pre-meeting inspection. The interface is designed to be approachable even for non-engineers.
System Requirements
利用環境と使用時の注意点をまとめています。Review the supported environment and usage notes before downloading.
Required Environment
- OS: Windows 10 / 11 64-bit
- Architecture: x64
- Supported Formats: STEP / STP / IGES / IGS / STL
- License: Freeware
- Package: Official ZIP download from the LWJ website
Usage Notes
- 同時に表示できるモデルは 1 つです。Only one model can be displayed at a time.
- V2.2 の穴チェックは STEP / IGES 専用です。STL、ネジ穴、タップ穴、長穴、楕円穴は対象外です。V2.2 hole checking is for STEP / IGES only. STL, threaded holes, tapped holes, slots and oval holes are not supported.
- STL では CAD 体積を取得できないため、一部の重量自動計算は使えません。Some automatic weight calculations are unavailable for STL because CAD volume is not available.
- モデルのパス、サイズ、更新時刻が変わると別モデルとして扱います。If the path, size or timestamp changes, the model is treated as a different file.
- 設計・製造・見積判断に使う前に、対象データで必ず確認してください。Always validate results with your own data before design, manufacturing or quotation decisions.
Version History
The current version and key updates are listed here.
-
STEP / IGES モデルを対象に、通常穴・座グリ穴・皿穴のチェック機能を追加しました。対象範囲や穴条件を指定して検出し、期待件数との差分、穴種別総数、個別穴一覧、3D 表示連動、CSV 出力に対応しました。
-
DirectX ベースの 3D 表示、Parts ツリーと部品詳細表示、Hide Others、STEP 色表示、面間距離・円筒径・コーナーR・外周長 / 面積計測、Results 管理、HTML View / HTML Export、3D Export に対応しました。Supports DirectX-based 3D viewing, parts tree and detail view, Hide Others, STEP color display, face distance, cylinder diameter, corner R, perimeter / area measurement, results management, HTML View / HTML Export and 3D Export.
-
初期公開版。STEP / IGES / STL の読み込み、軽量 3D 表示、断面表示、基本計測、質量確認、アッセンブリツリー閲覧、部分書き出し、STL 書き出しに対応しました。Initial public release with STEP / IGES / STL loading, lightweight 3D display, section view, basic measurement, mass properties, assembly tree browsing, partial export and STL export.
StepGeomChecker FAQ
Common questions before download are summarized below.
What is StepGeomChecker?
STEP / IGES / STL を対象にした Windows 向けの 3D確認・計測ソフトです。V2.2 では STEP / IGES の通常穴・座グリ穴・皿穴チェックに対応し、条件指定、期待件数比較、結果一覧、3D 表示連動、CSV 出力まで利用できます。It is a Windows 3D inspection and measurement tool for STEP / IGES / STL. V2.2 adds normal, counterbore and countersink hole checks for STEP / IGES models, with condition filtering, expected-count comparison, result lists, 3D view linkage and CSV export.
Which file formats are supported?
対応形式は STEP / STP、IGES / IGS、STL です。Supported formats are STEP / STP, IGES / IGS and STL.
Does hole checking support STL?
V2.2 の穴チェックは STEP / IGES 専用です。STL、ネジ穴、タップ穴、長穴、楕円穴は対象外です。V2.2 hole checking is for STEP / IGES only. STL, threaded holes, tapped holes, slots and oval holes are not supported.
Can it be used for business?
業務利用・商用利用は可能です。ただし、計測値や表示結果、書き出しデータの正確性・完全性は保証していません。Business use is allowed, but the accuracy and completeness of measurements, displayed results and exported data are not guaranteed.
What can it measure?
面間距離、円筒径、コーナーR、外周長・面積、エッジ長さ、中心間距離などに対応します。It supports face distance, cylinder diameter, corner R, perimeter/area, edge length and center distance.
Can results be saved?
計測結果はモデル単位で JSON に自動保存され、HTML レポートとして書き出すこともできます。Measurement sessions are auto-saved to JSON per model and can also be exported as HTML reports.
